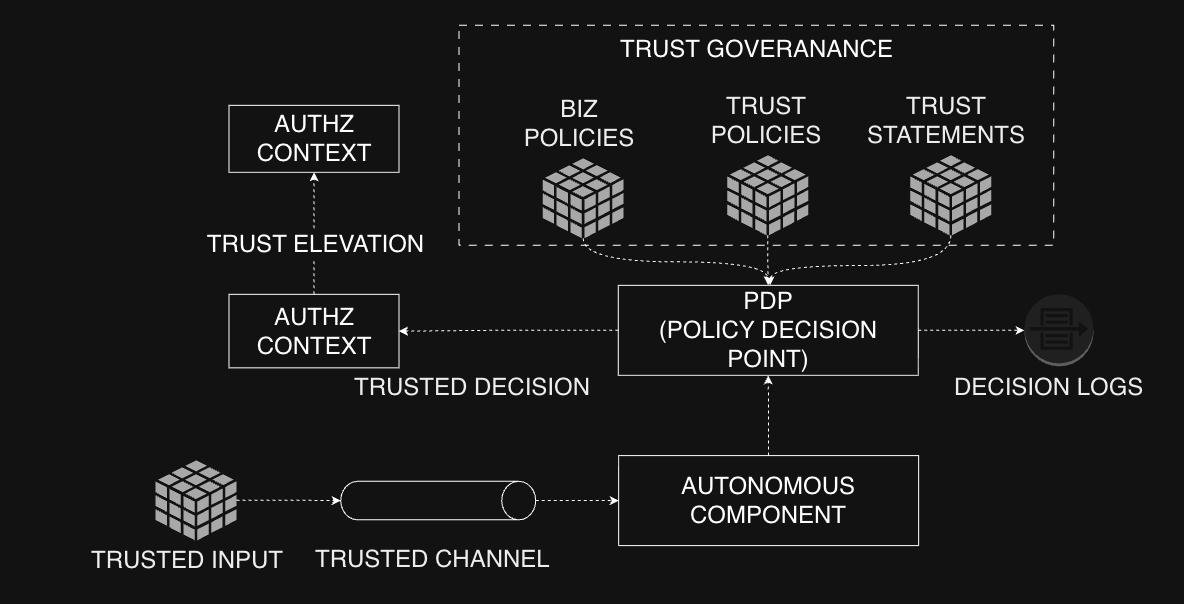

Architecture

Client-Host-Server Architecture

ZTAuth* employs a client–host–server architecture, defined as follows:

• Host: The environment where the client operates (e.g., a server, container, or edge device).
• Client: The protected entity (e.g., application, workload, or AI agent) requiring authorization to perform operations. It must possess valid permissions to function correctly.
• Server: The authorization server responsible for evaluating access requests and issuing authorization decisions.
• Transaction Token Service: A component conforming to the OAuth Transaction Token specification, responsible for issuing tokens to clients. These tokens are used by the PDP to evaluate and authorize specific transactions.

In this architecture:

• The Client acts as the Policy Enforcement Point (PEP). It initiates authorization requests and enforces the decisions received.
• The Server functions as the Policy Decision Point (PDP). It evaluates policies and returns authorization decisions.
• The Host serves as the runtime environment for the PEP.

The Policy Decision Point (PDP) supports two deployment models:

• Central Authorization Server: A shared PDP instance serving multiple Policy Enforcement Points (PEPs) across a distributed system.
• Proximity Authorization Server: A dedicated PDP instance deployed close to the protected entity, enabling low-latency authorization decisions and continued operation in the event of network disconnection.

In constrained or resource-limited environments, the PEP and PDP may be co-located on the same host to reduce complexity and improve performance.

ZTAuth* is designed to operate reliably in environments with intermittent or absent network connectivity. It employs an eventual consistency model in which authorization and trust models — collectively referred to as auth* models — are periodically synchronized from a central server.

  graph LR
    subgraph "Host Node"
        H[Host]
        C1[Client 1 <br> PEP]
        C2[Client 2 <br> PEP]
        H --> C1
        H --> C2
    end

    subgraph "Proximity Node"
        S1[Server <br> PDP]
        C1 --> S1
        C2 --> S1
    end

    subgraph "Remote Node"
        TTS["Txn-Token Service"]
        MR[("Auth* Models")]
        DL[(Decision Logs)]

        C1 --> TTS
        C2 --> TTS
        S1 <-- "NOTP" --> MR
        S1 --> DL
    end

The Proximity Authorization Server synchronizes the auth* models using the Negotiated Object Transfer Protocol (NOTP), ensuring that it maintains the latest version required for accurate authorization decisions.

ZTAuth* is designed for distributed systems and adheres to the principles of the CAP Theorem.

All authorization decisions issued by the PDP MUST be recorded in Decision Logs. These logs SHOULD be transmitted to a Remote Node for purposes of auditing and regulatory compliance.

Authorization Flow

The Application Client, acting as a Policy Enforcement Point (PEP), must ensure that the subject’s request can be authorized.

As a first step, the PEP generates a Transaction Token (Tx-Token) by invoking the Transaction Token Service (TTS). The request includes the subject proof (typically a token) and the workload proof (also typically a token).

The TTS uses the Trust Model to validate both proofs. The resulting Tx-Token is then sent to the Policy Decision Point (PDP) for evaluation, along with an authorization payload describing the access request.

The authorization payload is an extended structure that is compatible with the OpenID AuthZEN specification.

The PDP evaluates the request by accessing the Auth* Models, which include both the Authorization Model and the Trust Model.

  graph LR
    subgraph "Requesting Application"
        C1[Application Client <br> PEP]
        S1[Server <br> PDP]
        C1 -- (2) authz check --> S1
    end

    TTS["Txn-Token Service"]
    C1 -- (1) request txn-token --> TTS
    C2 -- (4) request txn-token --> TTS

    subgraph "Async Workload"
        C2[Workload Client <br> PEP]
        S2[Server <br> PDP]
        C2 -- (5) authz check --> S2
    end

    C1 -- (3) send message --> C2

The diagram above illustrates an authorization flow that includes a communication pattern between nodes, where each node performs its operation independently.

The mechanism used to exchange messages is out of scope for the ZTAuth* protocol. For example, if communication occurs via API, a token may be exchanged before being forwarded using OAuth 2.0 Token Exchange. If the message is delivered through a broker or event stream, a different transport mechanism may be used.

This does not affect the authorization flow or the overall behavior of the ZTAuth* protocol, which remains independent of the communication mechanism and the format used to transmit proofs.
